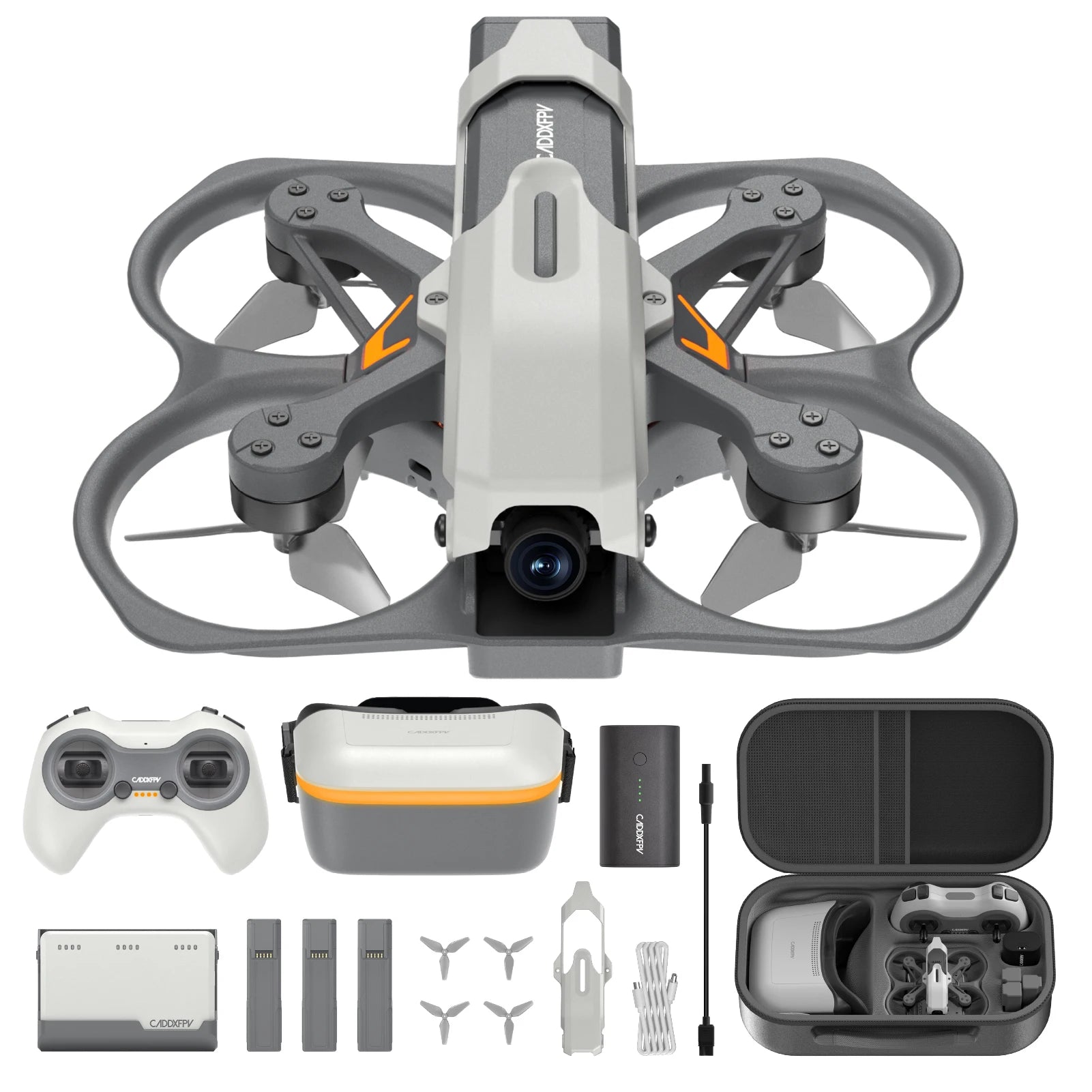

CADDX Protos FPV Drone Kit with ELRS Receiver and Goggles
CADDX Protos FPV Drone Kit with ELRS Receiver and Goggles
Couldn't load pickup availability
Experience instant control and razor-sharp FPV visuals with the CADDX Protos FPV Drone Kit, delivering millisecond ELRS responsiveness and an immersive goggles experience for your flights.
- Feather-light performance: a lightweight ~100 g frame with optimized brushless motors delivers instant takeoff, agile handling, and efficient power for indoor and outdoor routes.
- Crystal FPV imaging: 1080p60 video with 0.01 lux low-light sensitivity and a 147° FOV, paired with a 4.5-inch FPV display for expansive, vibrant scenes.

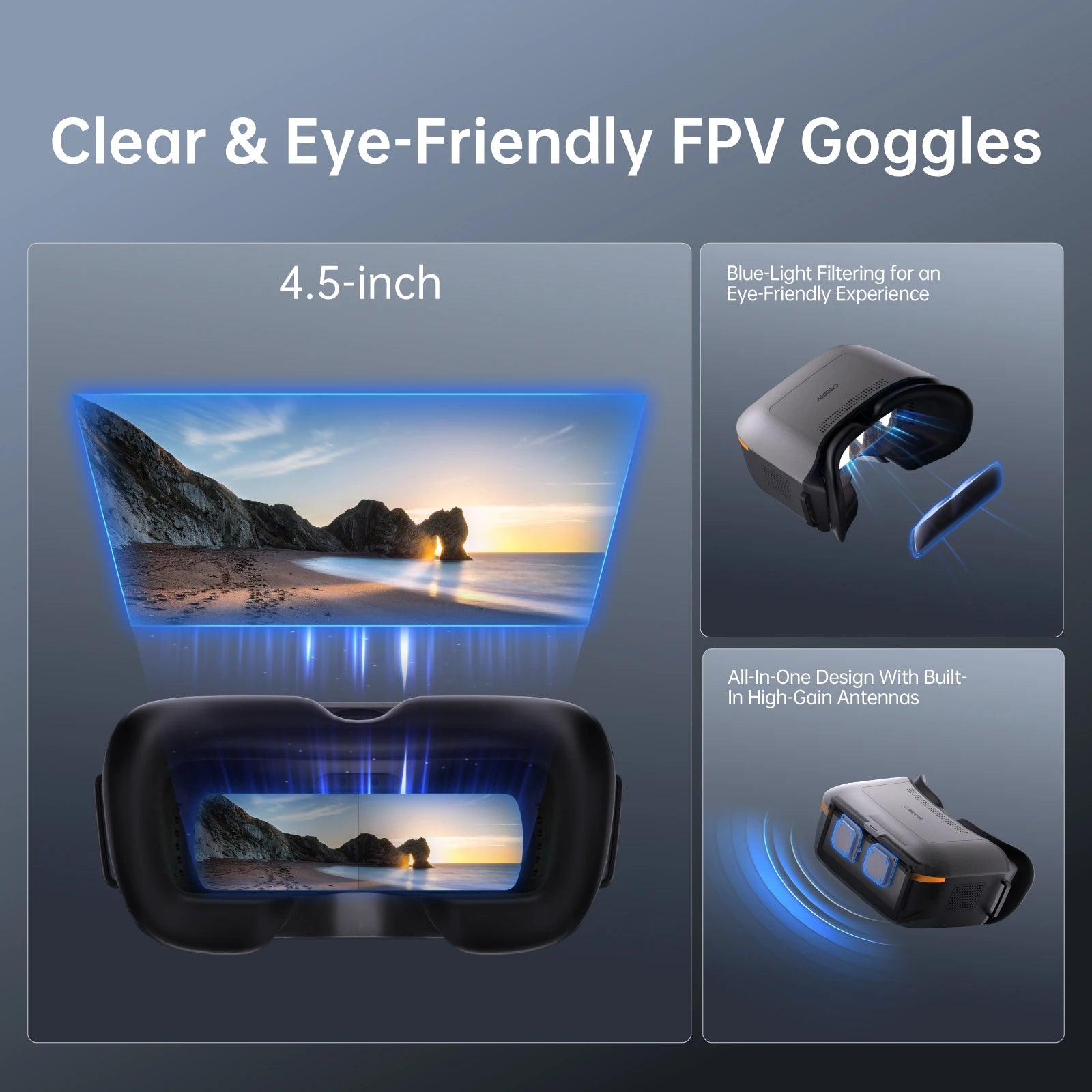

- Immersive goggles and recording: caddx Ascent goggles provide a bright, eye-friendly view, strong signal, and up to 256 GB recording with adjustable diopters.
- Power, charging, and safety: A-Link ELRS delivers millisecond responsiveness; three flight modes with smart hover and fail-safe; includes 2S 840 mAh battery and Type-C PD charging (5V adapter not supported).
PROTOS | FC | VTX | |||||
Flight Control | Caddx Protos Aio 1.0 | Main Control Chip | STM32-F405RGT6 | VTX Model | Ascent Lite | ||
Video Transmission | Ascent Lite | Gyroscope | BMI270 | Image Sensor | 1 / 2.8 inch Sensor | ||
Motor Diagonal Distance | 78mm | Barometer | SPL06 | FOV | 147° | ||
Motor | 1102 14000KV | Onboard Receiver | ESP8285 | Ratio | 16:9 | ||
Propeller | HQprop U40mm×3GR-PC-1.5mm | Receiver Protocol | ELRS 2.4GHz | Resolution | 1080P 60FPS;720P 60FPS | ||
Weight | 104.4g±1.5g | ESC Protocol Compatibility | Bluejay / BLHeli-S Optional | Built-in Storage | N/A | ||
Dimensions | 110x102.8x41mm | ESC Maximum Current | 12A (Single Channel) | Max Transmission Range | Max 3km | ||
Flight Endurance | 8.5min ±0.5min | Latency | Average delay 35ms | ||||
RC Receiver | ELRS 2.4GHz | Power | 25~100mW |
Ascent Goggles | |
Communication Frequency | 5.725-5.850GHZ |
Transmit Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
I/O Interface | 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot |
Transmission Resolution | 1080P60FPS, 720P60FPS |
Code Rate | Max 50 Mbps |
Minimum Latency | Average 32ms |
Average Gain | 4.9dBi |
Polarization | LHCP |
Transmission Distance | >4km |
Channel | 8 |
Screen Resolution | 1920*1080 / 60Hz |
Screen Material | LCD |
Screen Size | 4.5 Inch |
Wide Voltage Input | 6V~25.2V (2S~6S) |
SD Card Slot | Support 256G |
CADDXFPV Alink | |
Main Control Chip | AT32 F413RCT7 |
RF Module | ELRS 2.4GHZ |
RF Protocol | CRSF |
Max RF Power | 100mW (20dB) |
Number of Available Channels | 10 Channels (including 4 joystick channels) |
Joystick Type | Full-Bearing Hall-Sensor Joystick Assembly |
Function Switch | 1 x Latching Button / 2 x Momentary Buttons / |
Status Indicator Module | 4 x Status Indicator LEDs / Buzzer |
Charging & Communication Interface | USB-Type C |
Battery Specification | Lipo 1s 1000mAh |
Max Charging Power | 5V / 1A / 3.50W |
Operating Voltage Range | DC 3.50V~4.20V |
Dimensions | 158mmx108mmx58mm |
Weight | 180g±5g |

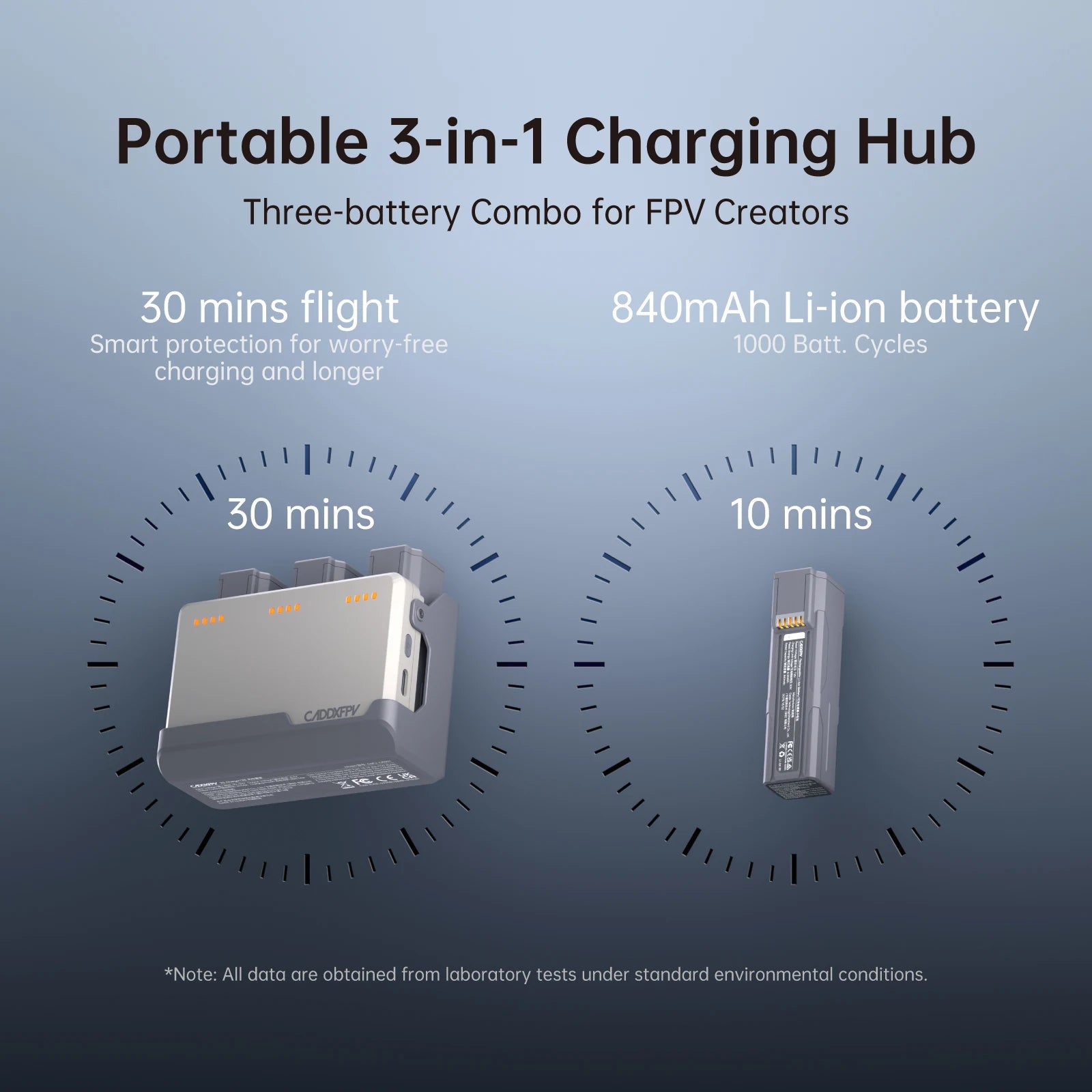

2S Charger | 2S Battery | |||
Name | 2S Charger | Name | 2S Battery | |
Display | LEDx4 | Battery Type | Li-ion (Lithium-ion Battery) | |
Channel | 3 (Sequential Charging) | Battery Capacity | 840mAh | |
Function Selection | Charging, Storage | Battery Specification | 2S1P (2 Cells in Series, 1 in Parallel) | |
Battery Type | Li-ion 2S 840mAh Battery | Discharge Rate (C-Rate) | 15C | |
Input Voltage | 12‒15V (PD Input, 5V Adapter Not Supported) | Maximum Power | 6.384Wh | |
Output Voltage | 8.7V | Voltage Range | 6.80V~8.70V | |
Input Current | Max.3A | Max Charging Voltage | 8.5V | |
Charging Current | Max.3A | Charging Method | 2S Charger | |
Balancing Current | Max.0.21A | Charging Time | ≤20min | |
Charging Power | Max.25W | Protection Mechanism | When the voltage of a single cell drops below 2.8V, | |
Discharging Power | Total Power: 5W (Max 1.6W per Channel) | Dimensions | 77.5x24x21mm | |
Interface | Type-C | Weight | 41.9g±0.5g | |
Operating Temperature | -10~45℃ | |||
Storage Temperature | -20℃~60℃ | |||
Dimensions | 94x63x39.1mm | |||
Weight | 65±0.5g | |||
